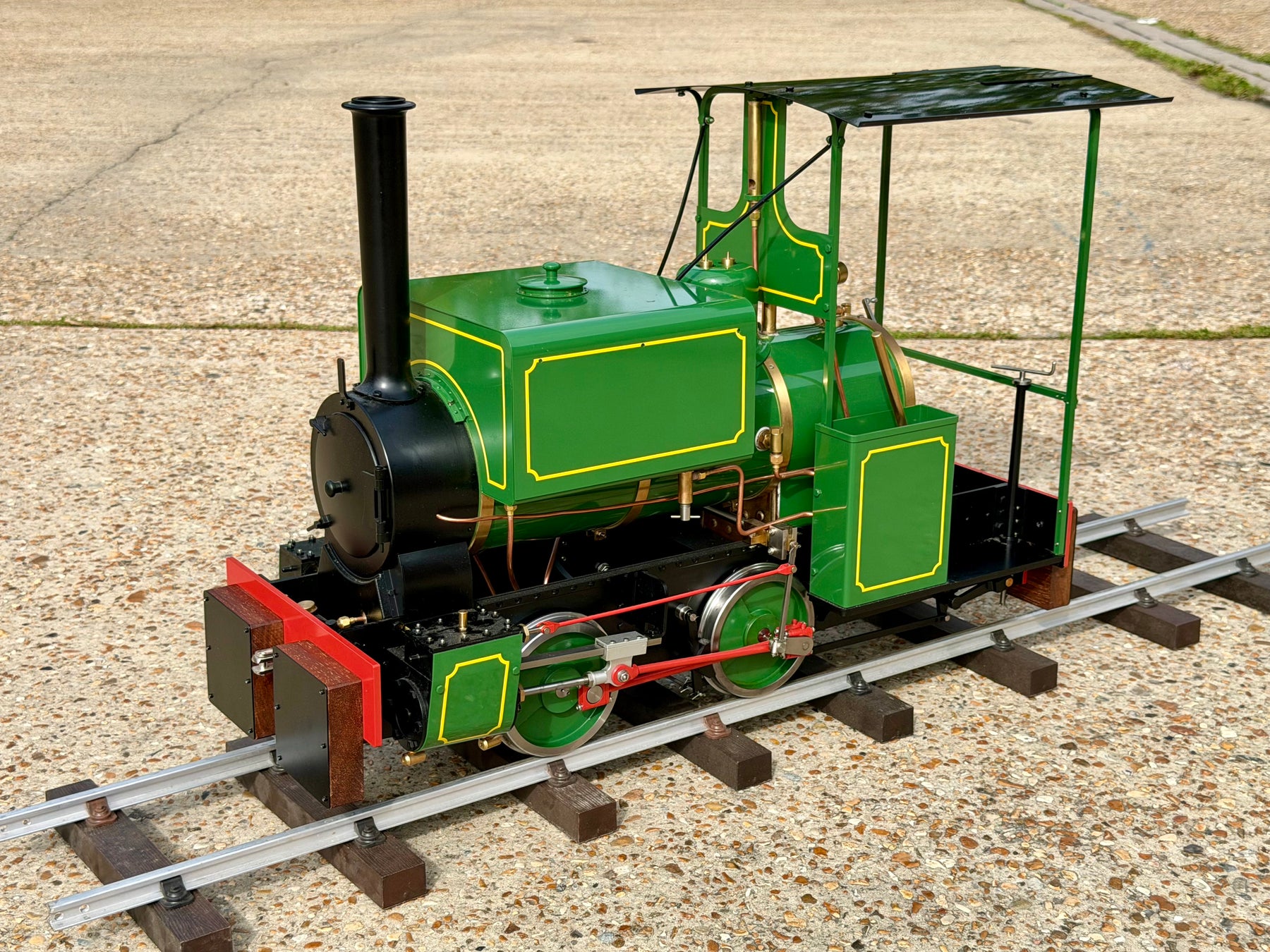

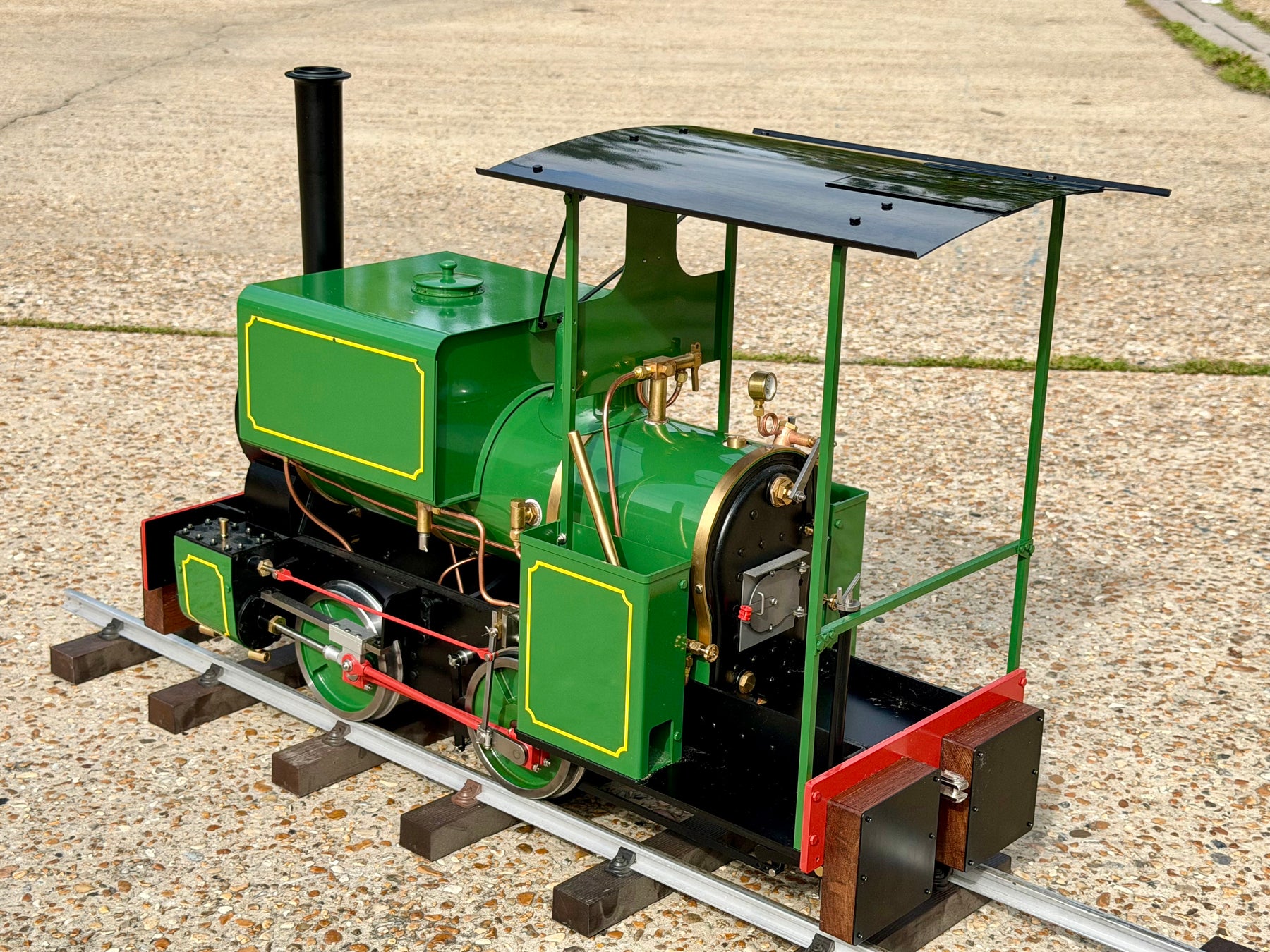

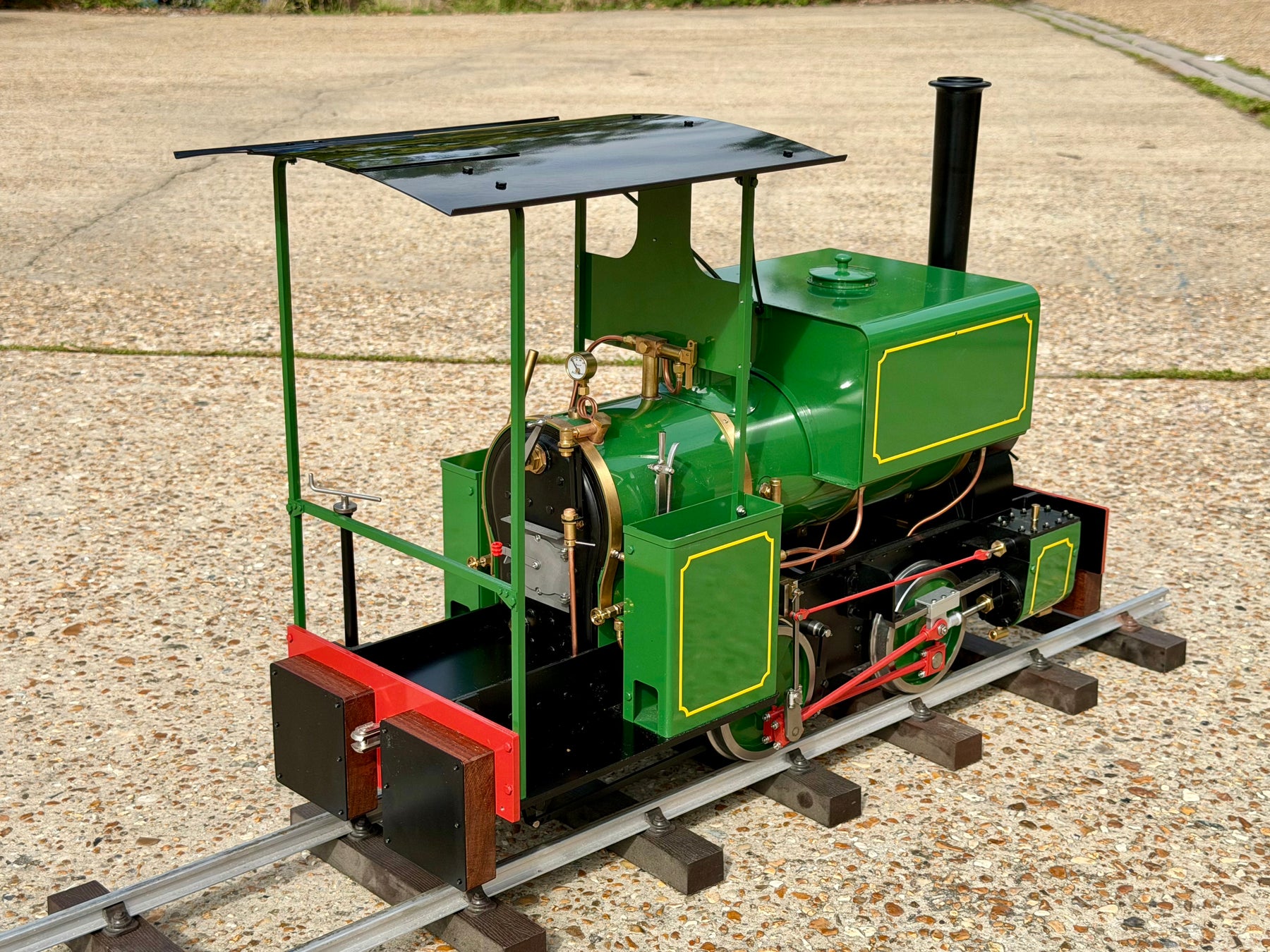

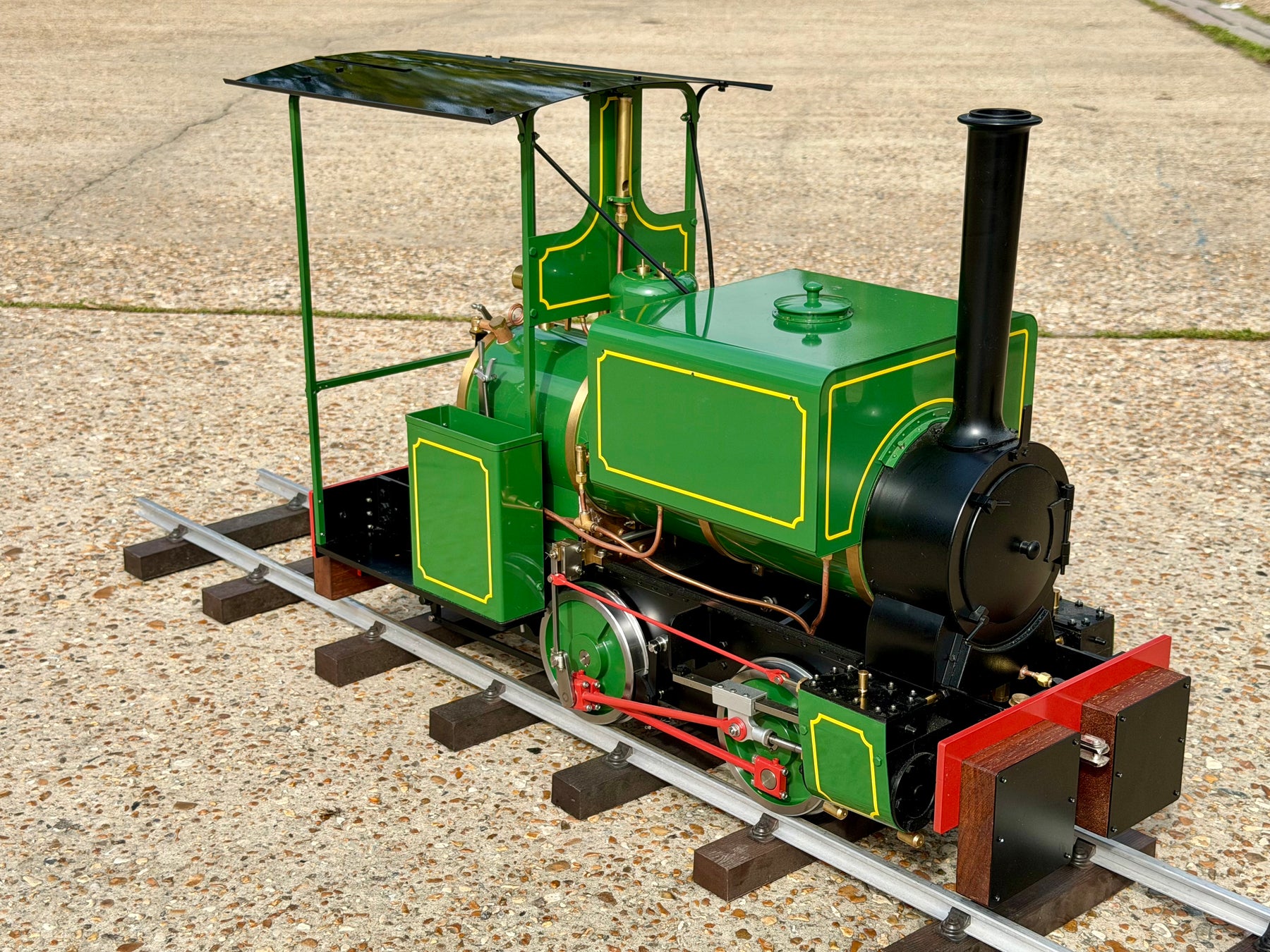

5 Inch Gauge Maxitrak Wren
Made from a kit and 99% completed, sadly due to ill health the builder was unable to carry on with the build, Everything is there, all spare parts are with it, Jobs left to do is straighten pipework, seal water tank, Add graphics and nameplates, test for leaks, running in and enjoy! a chance to get this very popular model pretty much as new at a great price!
SPEC:
5" Gauge
Scale: Scale 61mm to a ft
Length: 737mm
Width: 280mm
Height: 481MM
Minimum Radius: 8ft
Weight: 36kg (Dry)
Load Capacity: 6-8 Adults
Wheel centres: 190mm
Stainless steel saddle tank
Superheated UKCA/AMBSC approved Copper Silver Soldered Boiler
Coal fired
Boiler Dia: 120mm
Working Pressure: 90PSI
Cylinders: Cast Iron Grade 500-7
Cylinder Bore: 35mm
Cylinder Stroke: 48mm
Hackworth Valve Gear
Axle pump
Hand Pump
Displacement Lubricator
Optional Injector
REF: 26467
