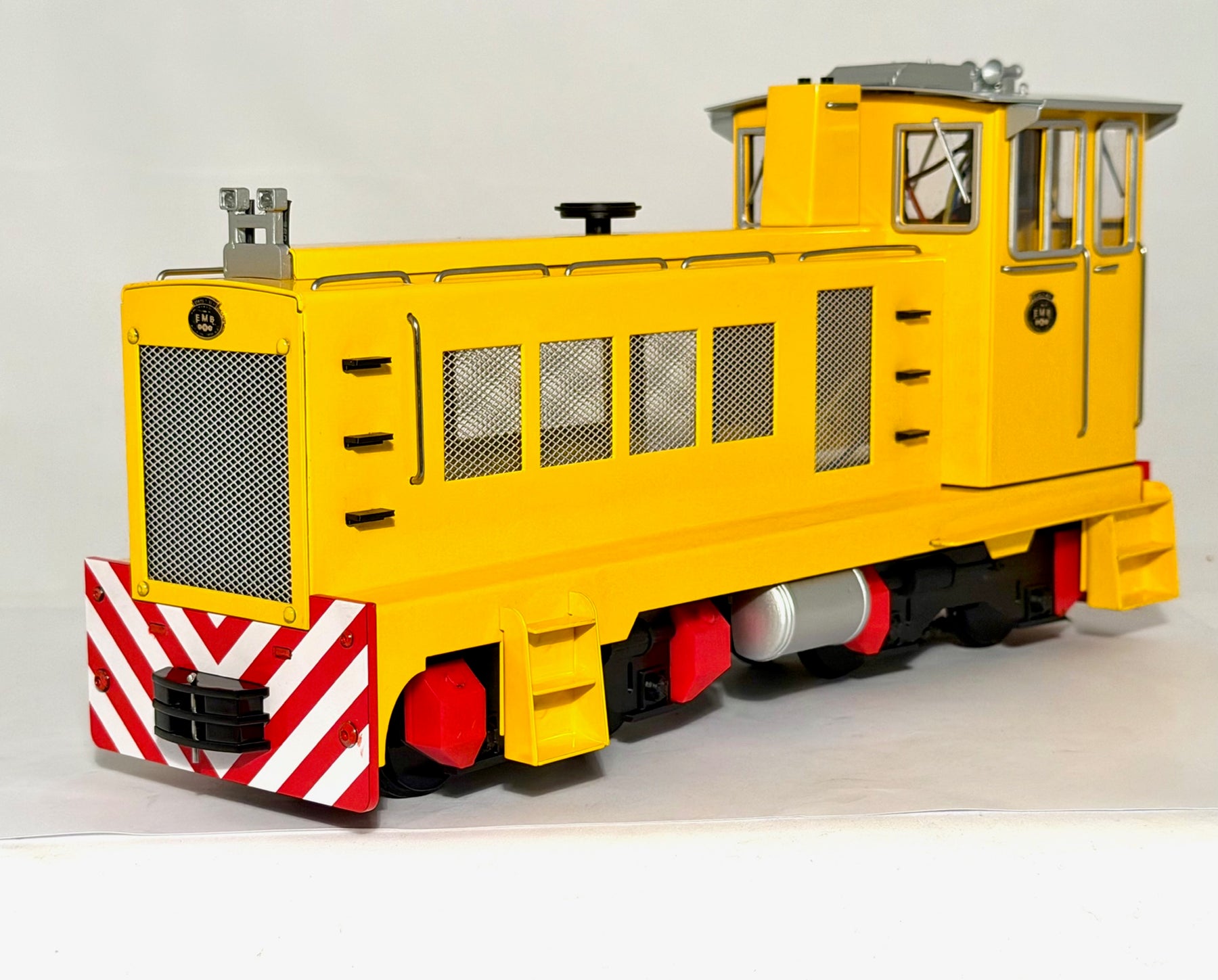

Our model is a scale version of the EM Baldwin Sugar cane locomotives produced by EM Baldwin and sons of Castle Hill, New South Wales, Australia. The company supplied smaller locomotives for industry from the 1950’s to the 1980’s. Designs included shunting, mining and tunnel locomotives but the most common surviving engines were built for the Queensland sugar industry. At this time the extensive 2ft gauge lines were changing from steam to diesel traction. EM Baldwin built a large number of the replacement diesels to a continuously evolving design, to the extend that there are hardly two alike. Engines and gearboxes varied depending on power requirements and suppliers delivery dates etc.

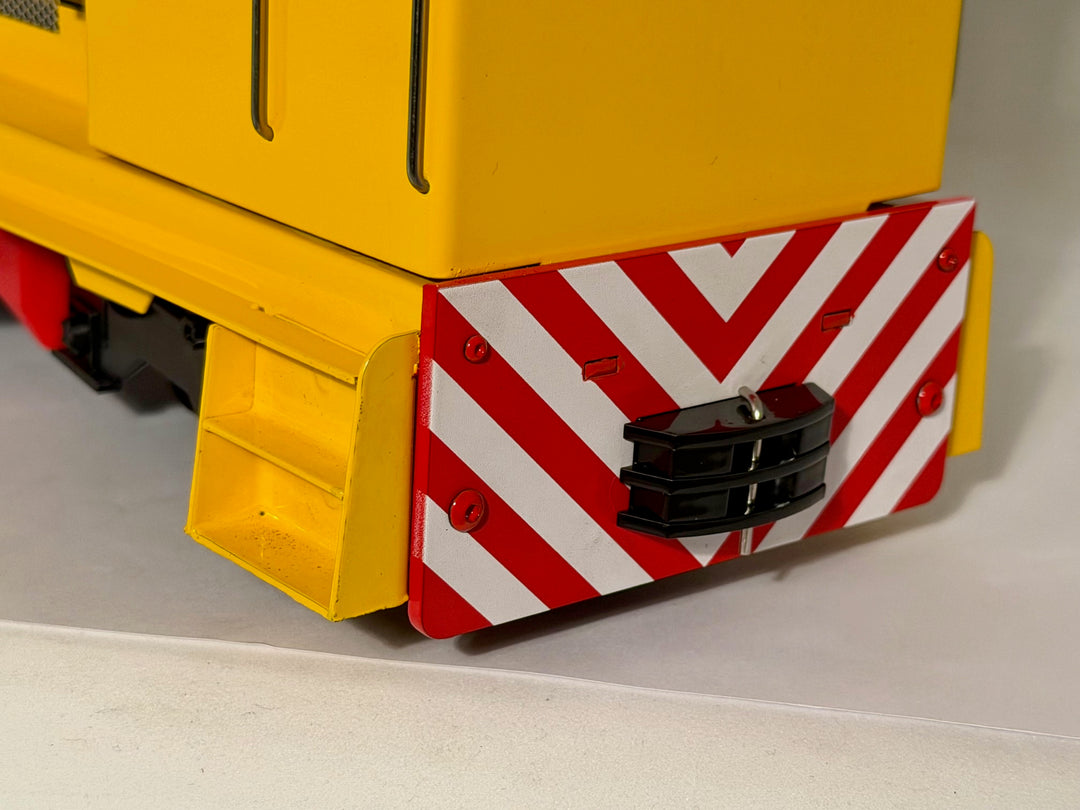

The usual sugar industry livery was bright yellow with red and white striped buffer beams, many enjoyed further enhancement with coloured stripes and panels giving the modeller many opportunities to customise the standard colour scheme. Many of these engines are still hard at work in the cane cutting season and form the backbone of the largest surviving 2ft gauge industrial railway system in the world.

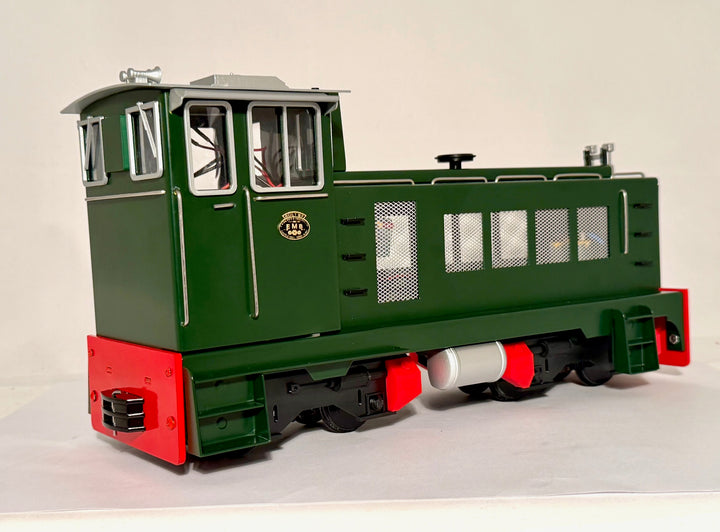

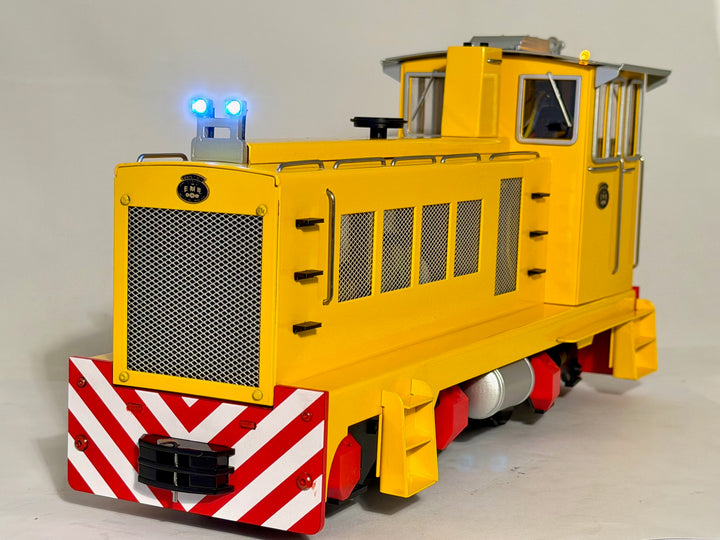

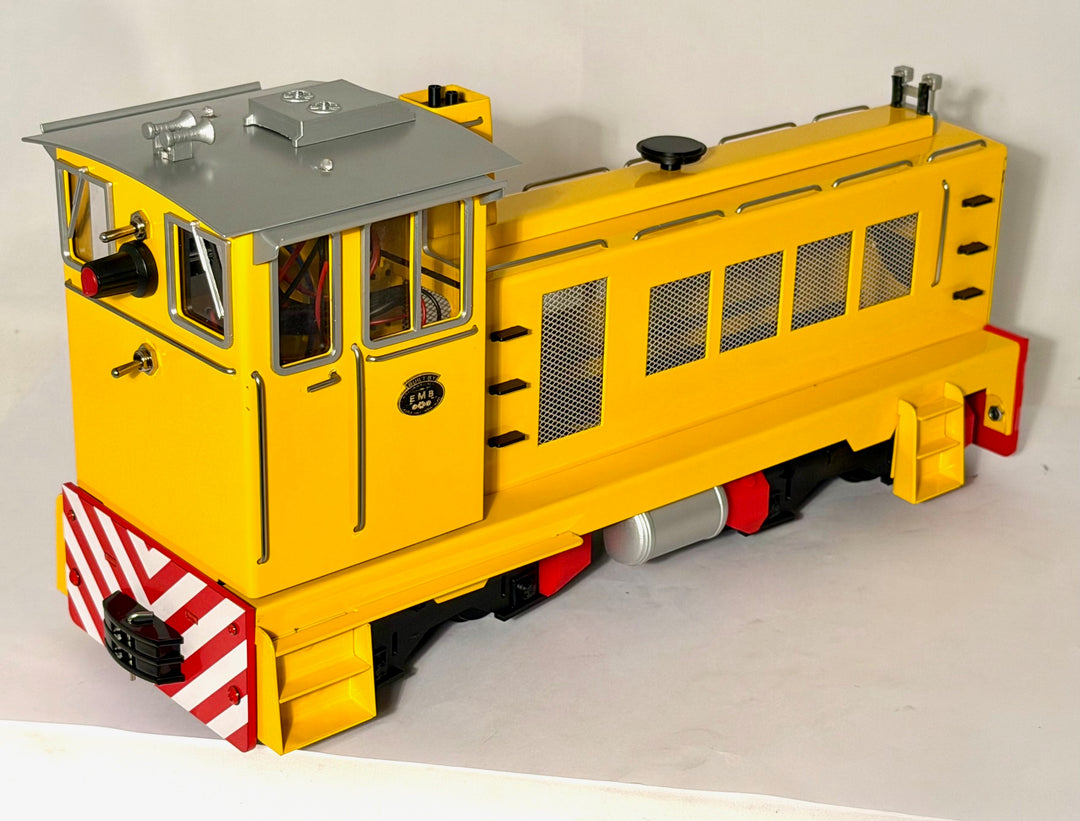

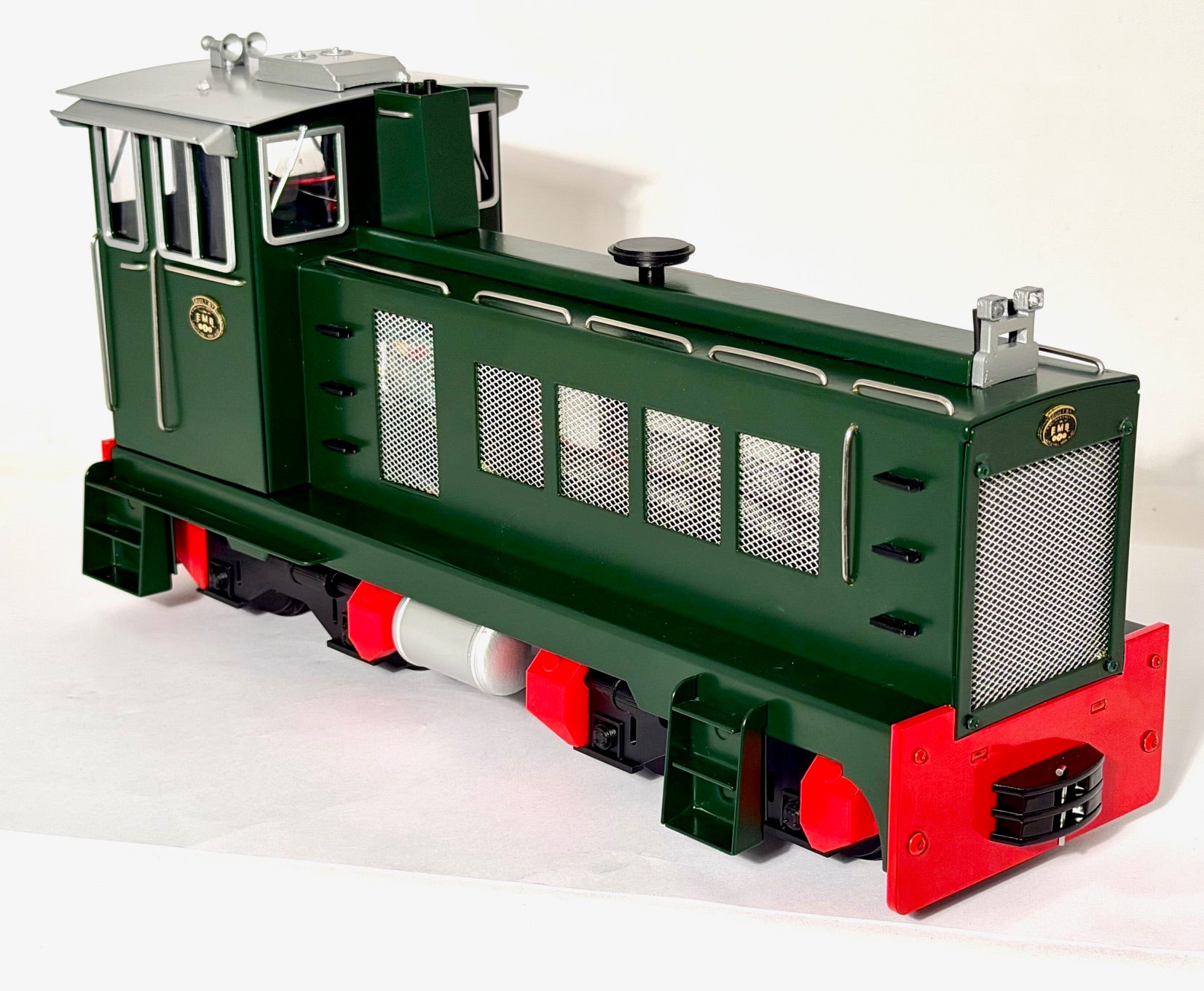

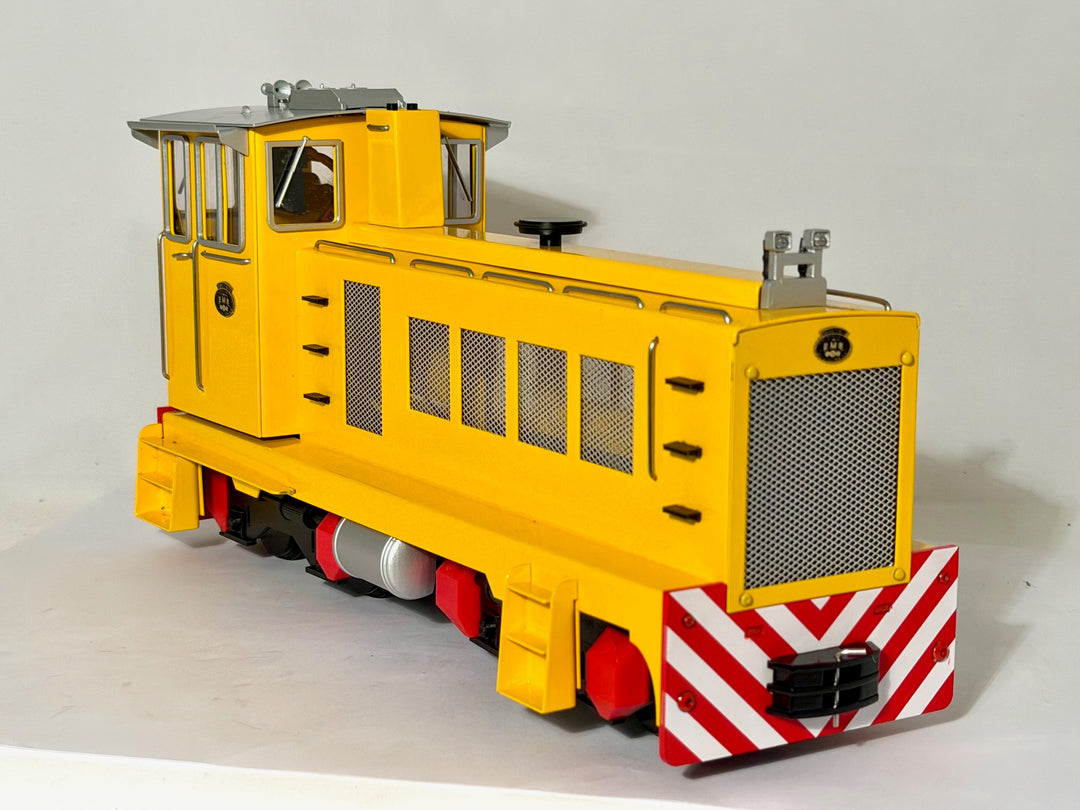

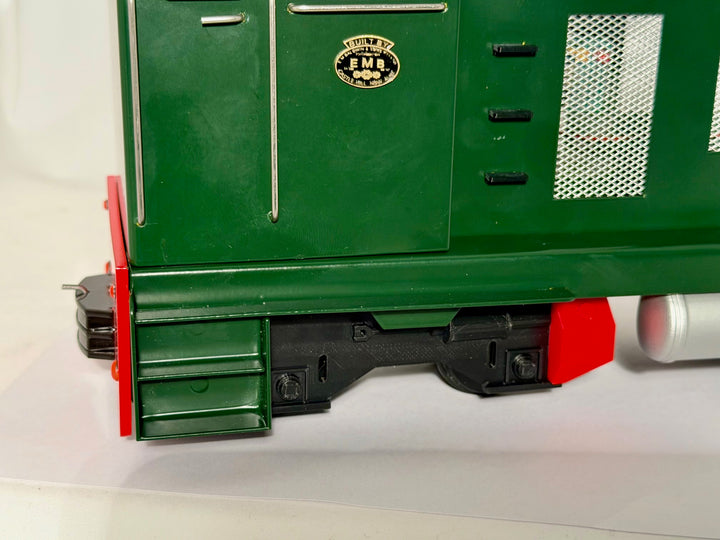

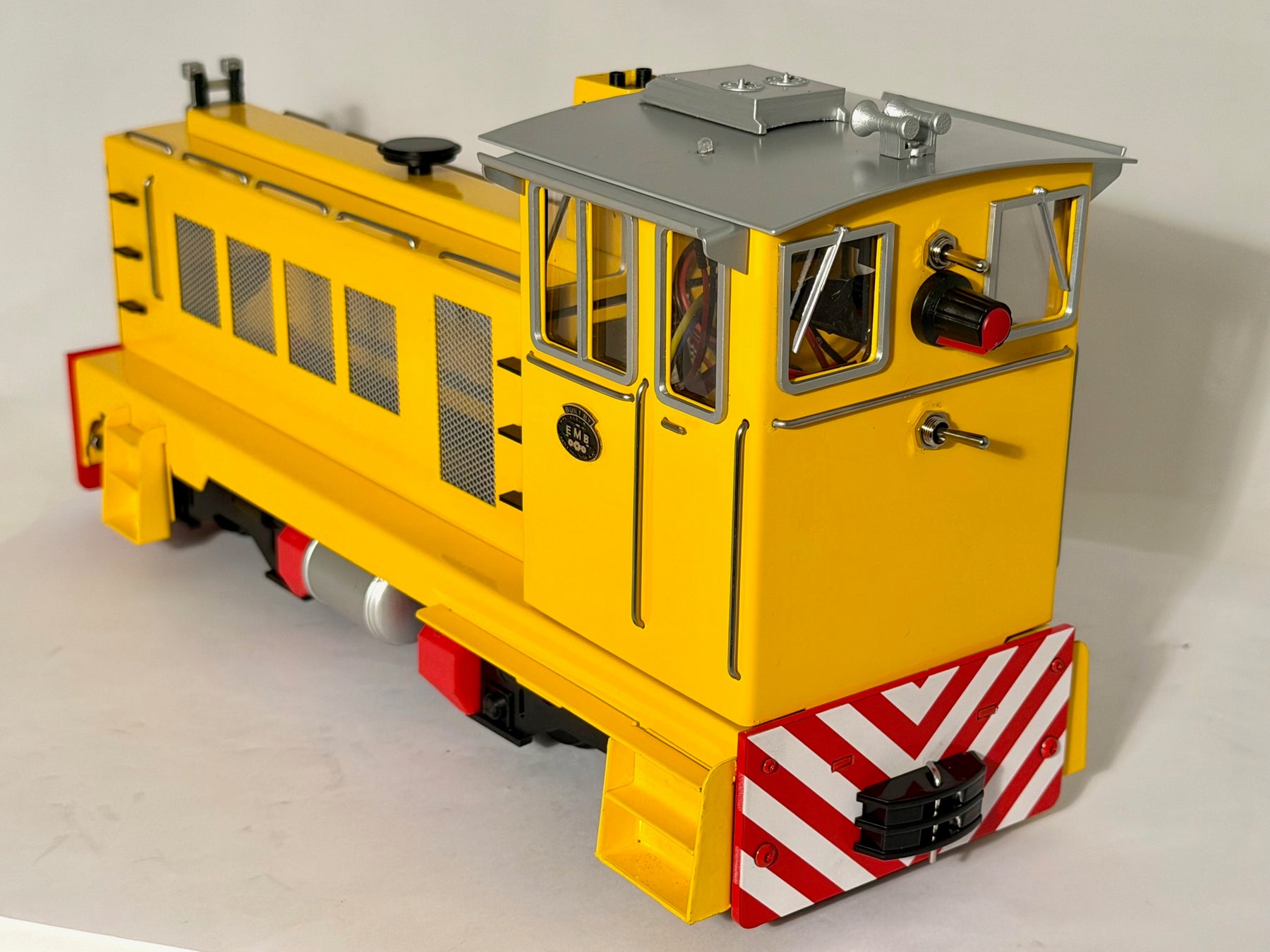

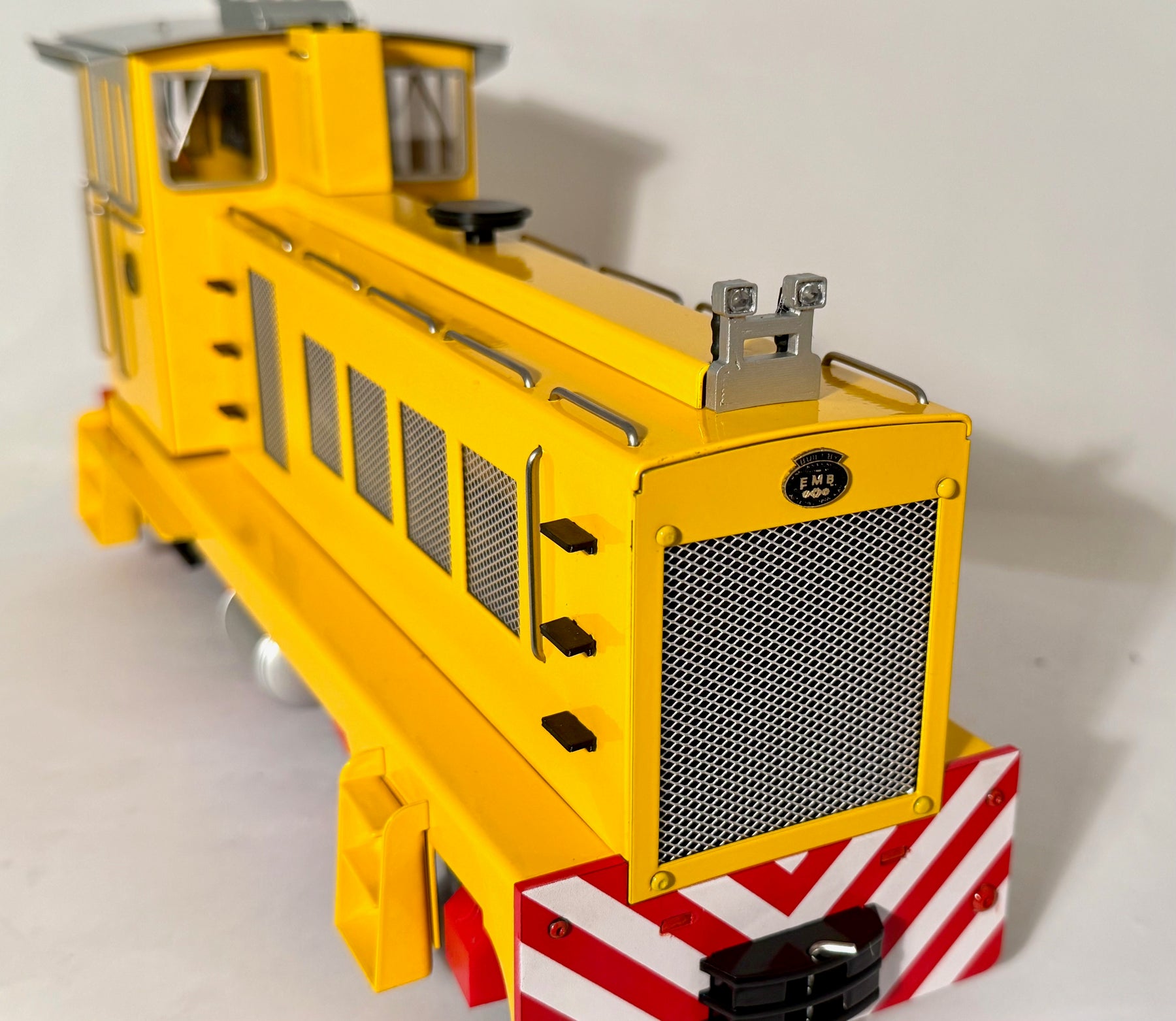

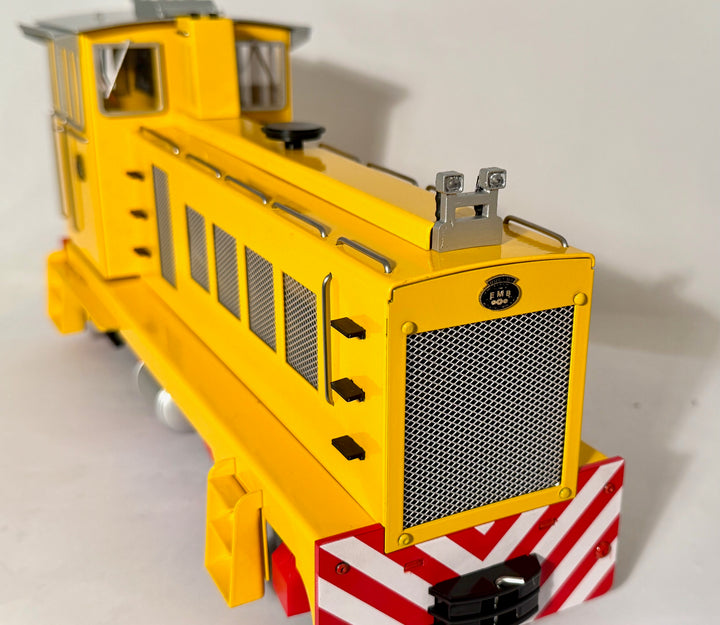

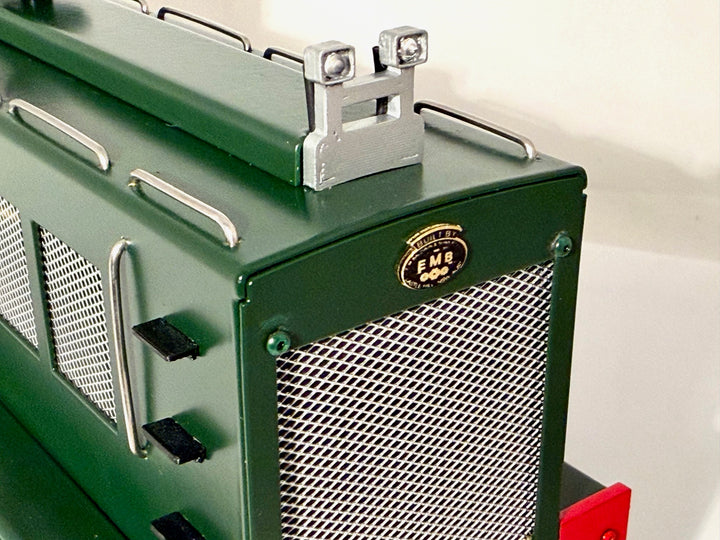

Our model features an all steel bonnet, chassis and full cab and incorporates the distinctive E.M Baldwin makers plates. Constructed with moulded and 3D printed parts to give an enhanced level of detail, including LED lighting set
Specifications:
Scale: 16mm /ft
Gauge: 45mm or 32mm – adjustable
Length: 328mm over buffer beams.
Width: 120mm (footsteps removable)
Height: 173mm over roof
Wheel Dia: 30mm
Bogie Wheelbase: 66mm
Weight: 2.6kg without battery
Geared: 12v motor with bevel gear drive to rear axle , steel roller chain and sprockets.
Powered: 12v Battery. Twin bogies with single or twin motors.
Three pocket coupler, this can be reconfigured to take an Accucraft chopper coupling

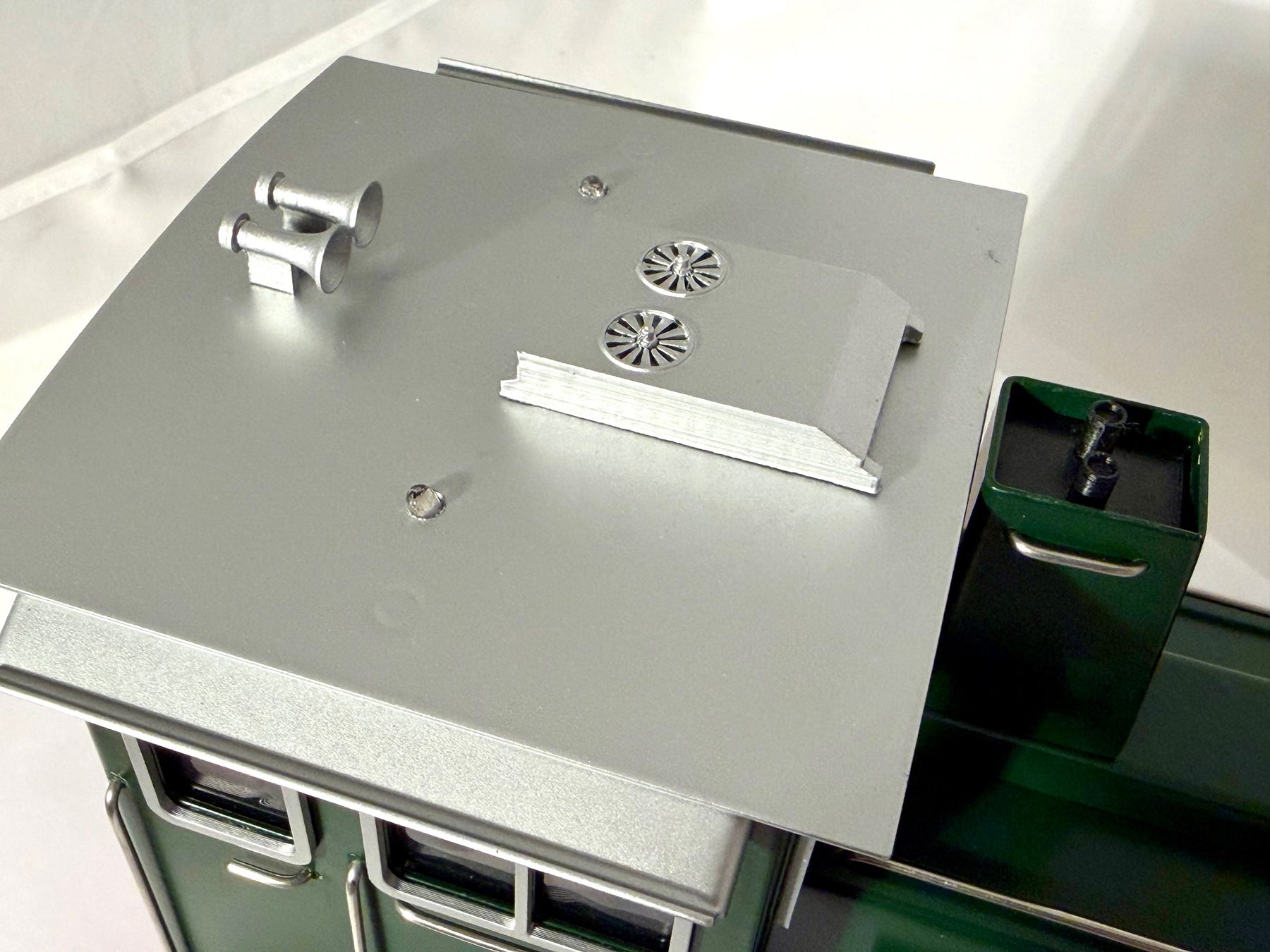

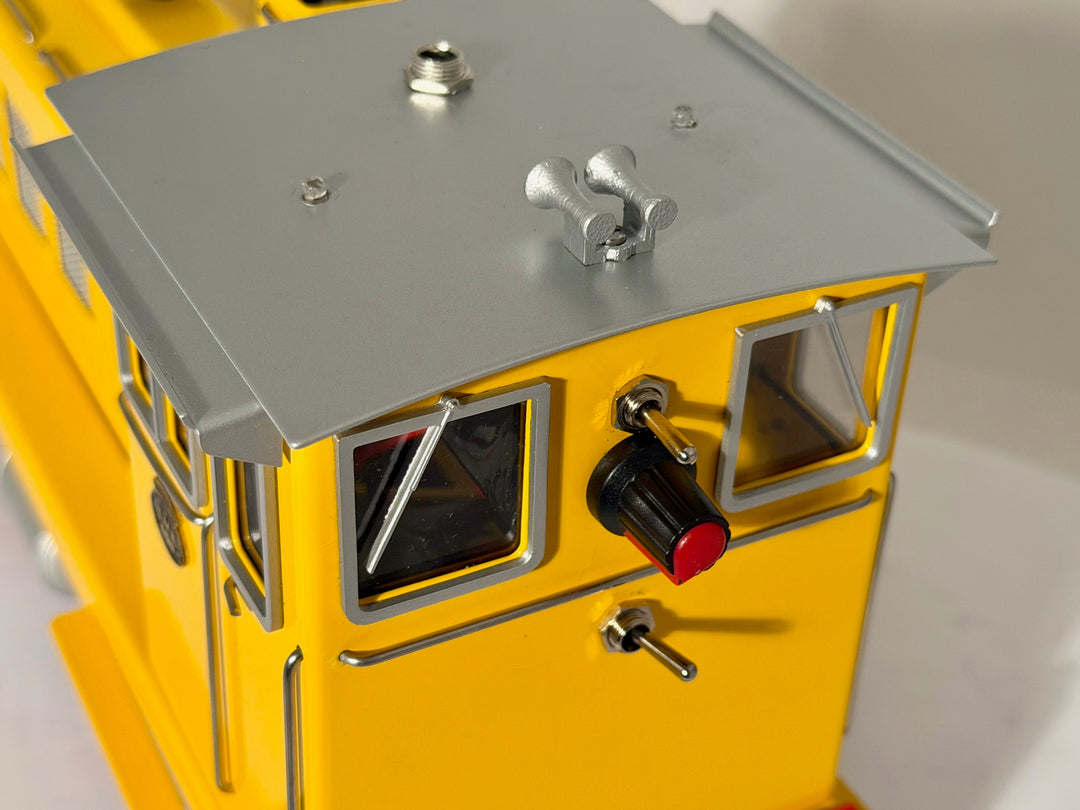

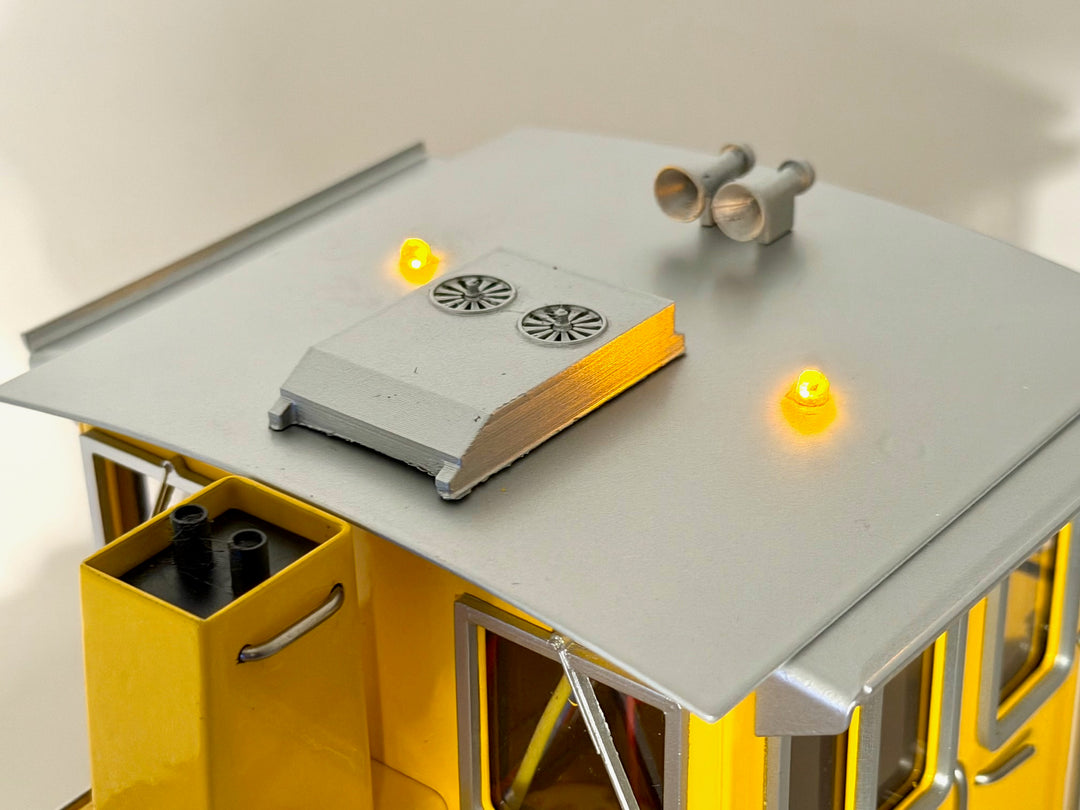

Cab Controls: Manual control with charge point on roof.
Radio Control & sound options available

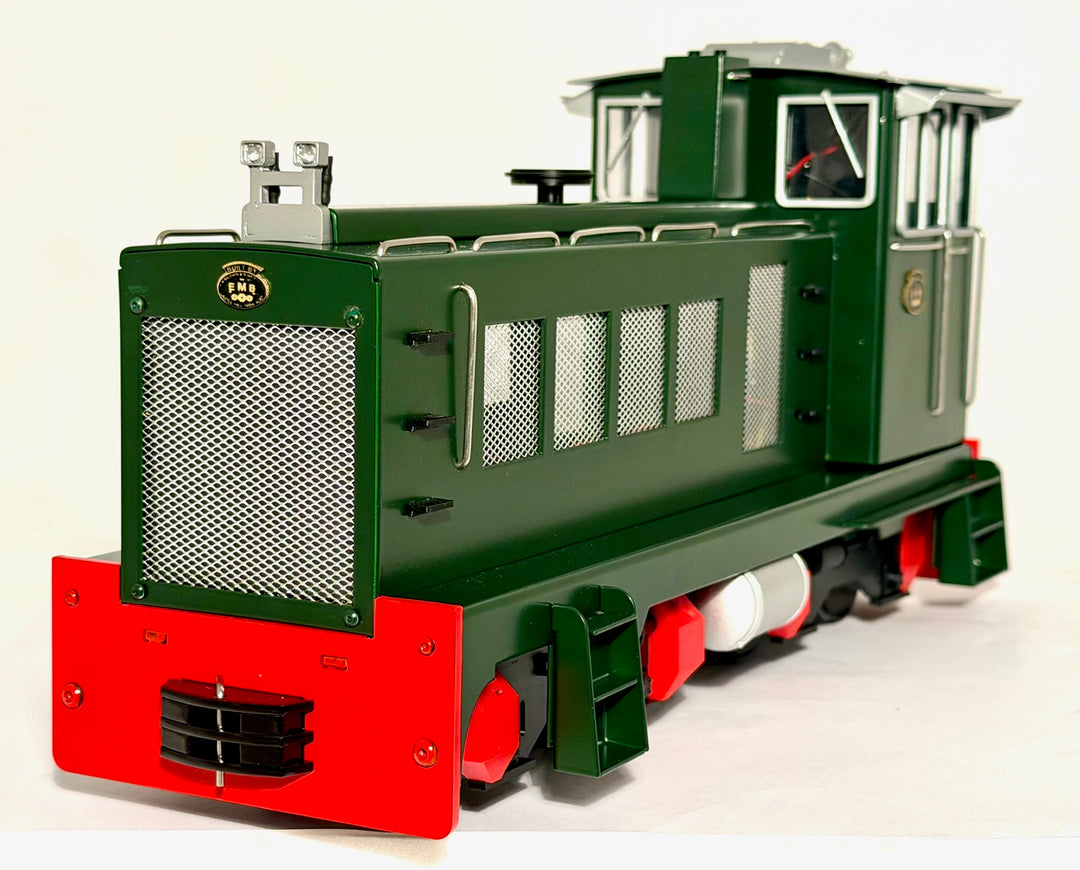

Livery choice: yellow as standard, alternative colour at additional cost
Other liveries available to special order.
Kits & Ready to Run models available with a short lead time, any queries please get in touch.
