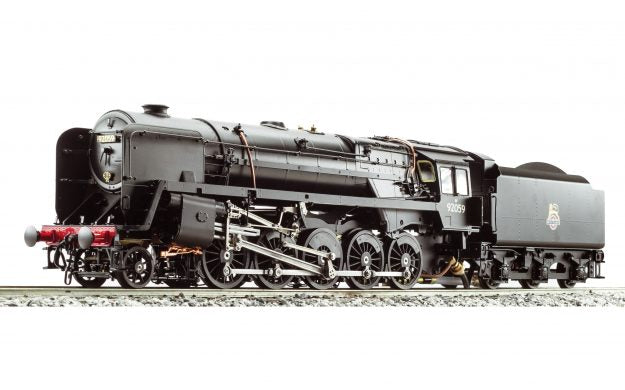

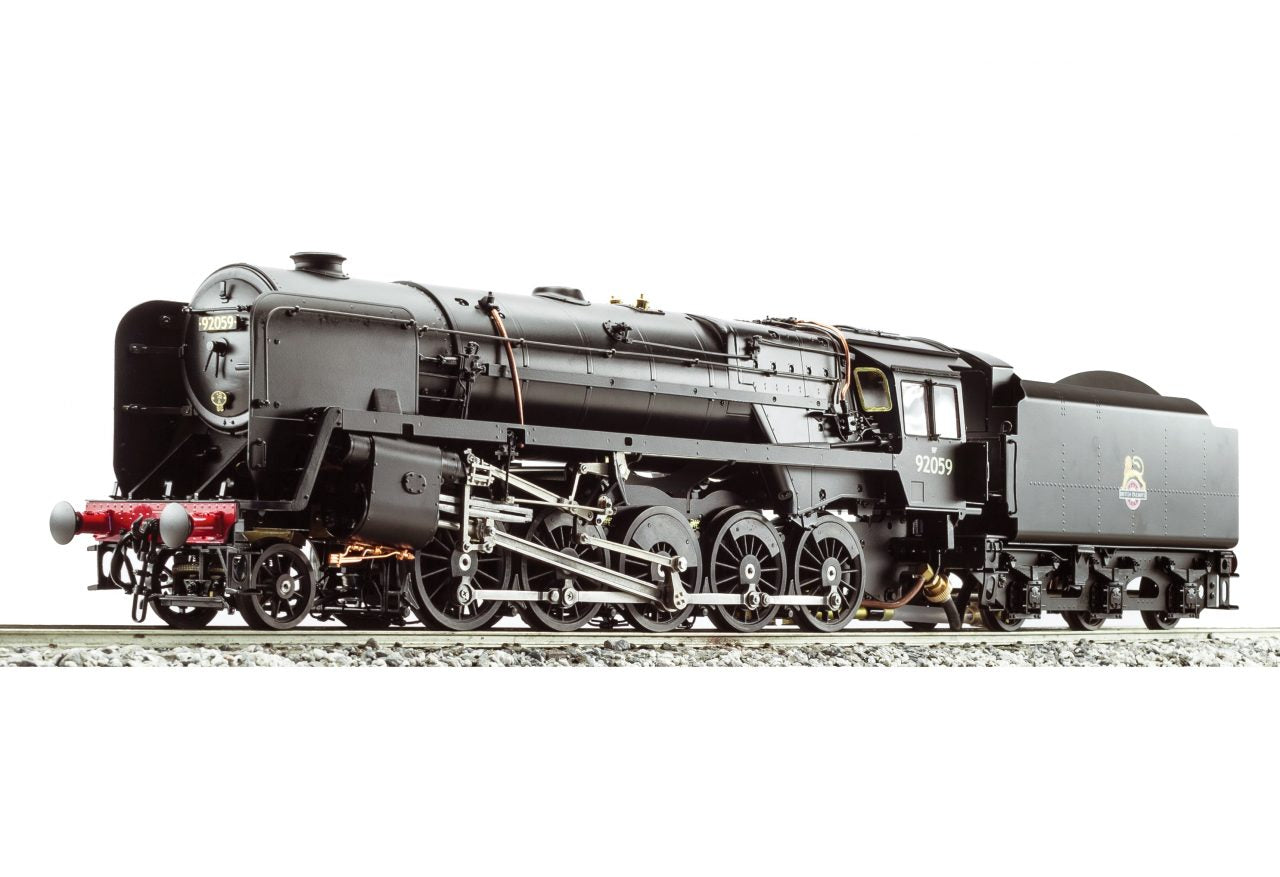

BR 9F 2-10-0 Live Steam, Alcohol Fired

This model is now discontinued.

The British Railways BR Standard Class 9F 2-10-0 was designed for British Railways by Robert Riddles for use on fast, heavy freight trains over long distances. The total number built was 251. The last of the class, No. 92220 Evening Star, was the final steam locomotive to be built by British Railways, in 1960. Withdrawals began in 1964, with the final locomotives removed from service in 1968. Several examples have survived into the preservation.

This is the first co-operative project between Aster Hobby Co. Inc. (Japan) and Accucraft Trains (USA). Aster’s experience and expertise in producing the finest kit models has been combined with Accucraft’s component manufacturing and production skills to produce the Aster-Accucraft BR 9F. This model is offered in both kit form and as a fully assembled, ready to run model. As a kit, the components are fully painted and detailed (according to the version offered), all machining is done, and the boiler is fully assembled and pressure tested.

Specifications:

• 1:32 Scale / 45 mm Gauge
• Brass & Stainless Steel Construction
• 6 1/2 ft. (2 M) Mini. Radius
• Length: 25.2 in. (640 mm)
• Width: 3.43 in. (87.2 mm)
• Height: 4.92 in. (125 mm)

Features:

• Alcohol fired
• 'C' type water capacity 255 cc at 80% off
• Walschaerts valve gear
• 2 cylinders with piston valves
• Roscoe displacement lubricator
• 3 tubes alcohol burner
• 2 safety valves
• Regulator valve
• Blower valve
• Reverser handle
• Drain valve handle
• By-pass valve
• Pressure gauge
• Water level gauge
• Blow-down valve
• Hand water pump in tender
• Removable alcohol tank capacity 180 cc
• Axle water pump

Versions available:

AST- 9F 9F 2-10-0, No. 92059 RTR, Alochol Fired
AST-9FKIT 9F 2-10-0, No. 92059 Kit, Alochol Fired

You can download the kit assembly and operating instructions here and the associated illustrations here.
